When evaluating a stainless steel water tank, most specifiers focus on the material—304 vs. 316 stainless steel. While critical, the tank’s internal architecture is just as important for long-term performance, safety, and maintenance costs. The debate often comes down to one key feature: internal bracing.
The Traditional Approach: The “Cage” of Internal Tie Rods
For conventional tanks (both welded and some modular types), the primary method to resist the immense hydrostatic pressure of water is a network of internal tie rods and supports. These are typically welded or bolted in a 1m x 1m grid pattern.
The Disadvantages of Internal Bracing:
- A Cleaning Nightmare: Every tie rod and support creates a surface for biofilm, sediment, and bacteria to accumulate. Cleaning a “caged” tank is difficult, requiring personnel to navigate a complex obstacle course, which is both hazardous and inefficient.
- Increased Corrosion Risk: The junctions between tie rods and tank walls are stress points, and in welded versions, they are prime locations for crevice corrosion. Even in bolted designs, these areas are difficult to inspect and maintain.
- Reduced Effective Volume: Large internal structures take up space within the tank, reducing its effective storage capacity for a given footprint.
- Compromised Safety: Cleaning personnel are at a higher risk of injury when maneuvering around sharp edges and complex bracing within a confined space.
The LeAqua Engineering Breakthrough: The Self-Bracing Panel
Advanced structural engineering from LeAqua has led to a better approach: the self-bracing panel. The “Ultra-Rigid Double-sided Arc-Ribbed Plate” is a prime example of LeAqua’s design philosophy. This geometry transforms a flat sheet of steel into a load-bearing structure capable of spanning greater distances without internal support.
How it Works:
- Dual-Sided Arc Ribs: The panel is deep-drawn with a proprietary die that creates a corrugated pattern on both the inside and outside surfaces.
- Enhanced Stiffness: This geometry provides over 3 times the stiffness of a traditional flat or X-braced panel.
- Load Dissipation: The arc shape efficiently distributes the internal water pressure, reducing concentrated stress on any single point.

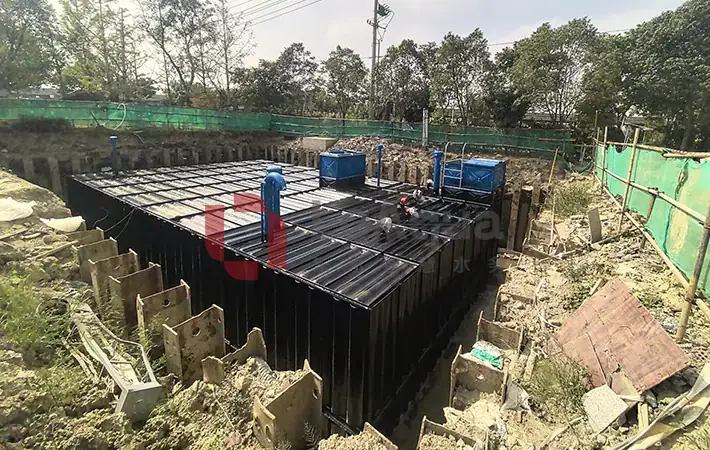

The Result: The LeAqua No-Tie-Rod Interior

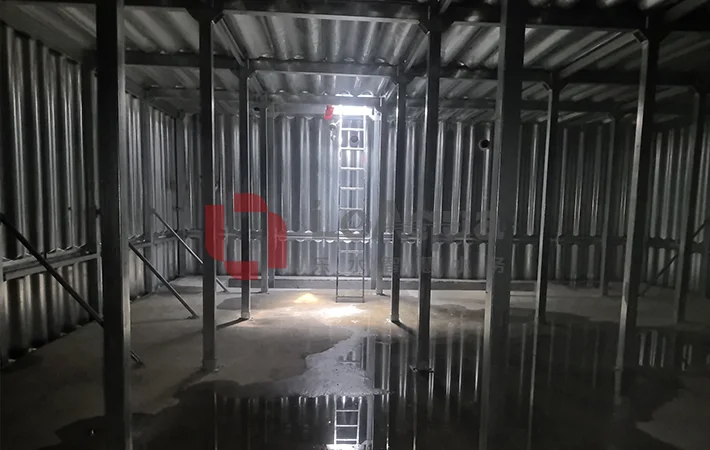

- Unmatched Cleanliness: With no horizontal tie rods, the interior is a clear, open space. This allows for easy installation of automatic cleaning robots and ensures thorough manual cleaning, guaranteeing water quality.
- Superior Safety: Operators can walk freely inside the tank during cleaning and inspection without tripping hazards or sharp obstructions. This significantly reduces safety risks.
- Zero Ponding: The outward-bulged design of the bottom panel ensures no water accumulates at the base, preventing the formation of stagnant water zones and biological growth.
- Optimized Structure: The internal space is freed up for vertical support columns only, which are easier to keep clean and do not impede flow, as detailed in the LeAqua internal support installation specifications.
Engineer Recommendation: Engineering for the Future with LeAqua
When selecting a water tank, look beyond the material thickness. Examine the panel geometry. A water tank that relies on a cage of internal bracing is a water tank that will be difficult and expensive to maintain. An ultra-rigid, tie-rod free water tank from LeAqua is the superior choice for applications where water quality, operator safety, and lifecycle costs are paramount—which should be every project.
