Smart Booster Pump Station for Regional Water Supply

Project Profile

• Location: Jianhu , China
• Application: Regional Water Supply Improvement Program
• Footprint: 12 × 6 × 5.8 m (Pump Room) & 15 × 12 × 4 m (Reservoir)
• Core Solution: Smart Booster Pump Station (Split-Level Design)

“To resolve pressure fluctuations and strengthen water distribution across remote service areas, LeAqua deployed an integrated smart booster pump station combining a space-saving split-level design with intelligent IoT automation.”

The Challenge

Remote regional water distribution networks frequently face operational bottlenecks that traditional infrastructure cannot efficiently solve:

• Pressure Fluctuations: Maintaining stable water delivery and flow balancing across scattered service areas.
• High Land & Civil Costs: Conventional layouts require extensive footprints, leading to high land acquisition and construction overheads.
• O&M Inefficiencies: Remote locations make manual supervision cost-prohibitive, demanding high electrical safety and reliable automated diagnostics.

Our Engineered Solution

LeAqua engineered a highly integrated Smart Booster Pump Station that redefines space utilization and operational safety through structural and digital innovation.

Robust Hardware Design & Spatial Optimization

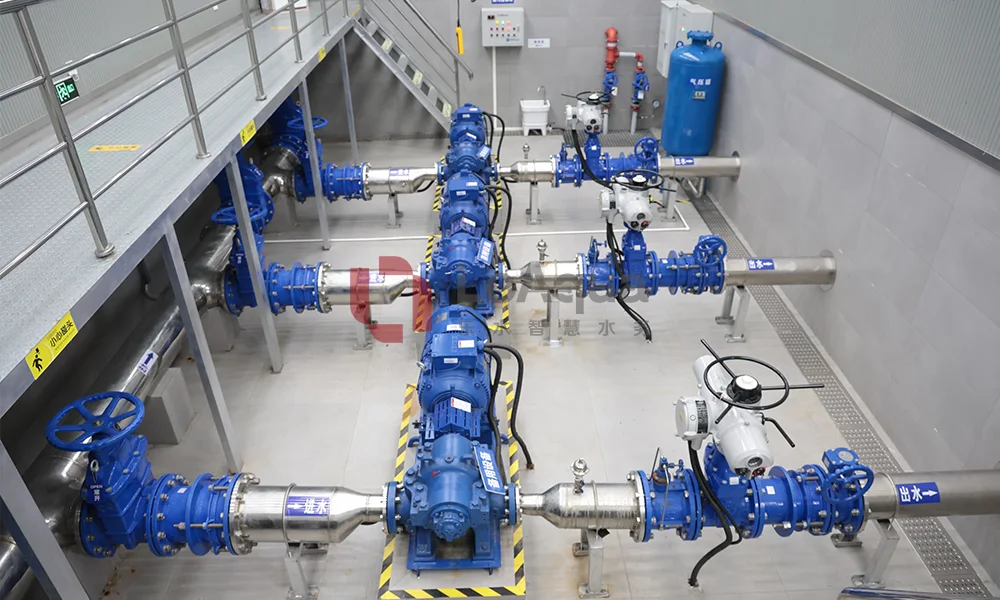

• Innovative Split-Level Pump Room: Features a 1.8 m elevation offset that enables natural self-priming operation. This layout significantly boots effective tank utilization while minimizing the overall civil engineering footprint (Pump Room Size: 12 × 6 × 5.8 m).
• Multi-Layer Protective Enclosure: To separate control and process zones for maximum electrical safety, the structure adopts a specialized four-tier wall system:
  • SS304 Stainless Steel External Panels
  • Fire-Resistant Thermal Insulation
  • Reflective Aluminum Film Layer
  • Acoustic Insulation Panels (Low-Noise Operation)

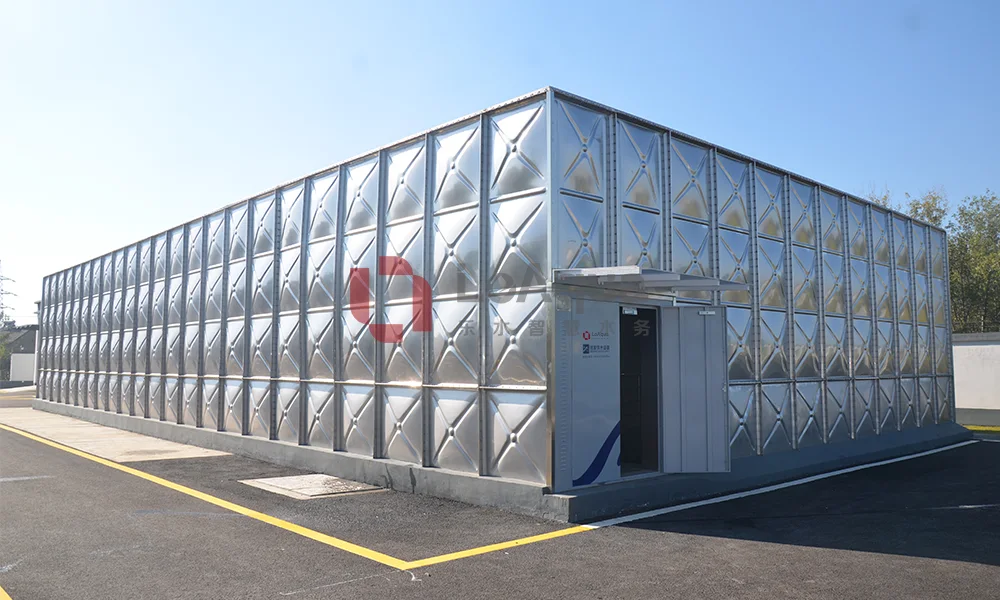

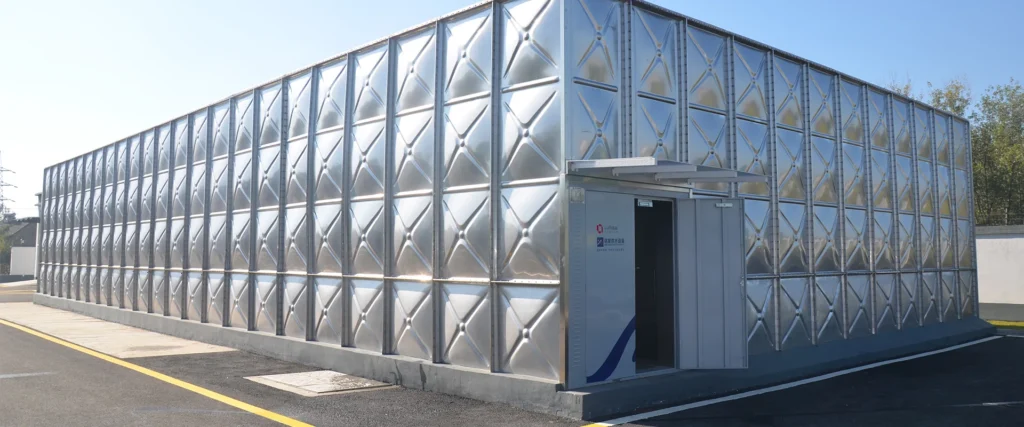

• Modular Stainless Steel Reservoir: The clean water reservoir (15 × 12 × 4 m) utilizes a large-panel, bolted assembly system. Eliminating welding and horizontal seams completely mitigates risks of thermal deformation, corrosion, and structural fatigue.

Intelligent Automation & IoT Connectivity

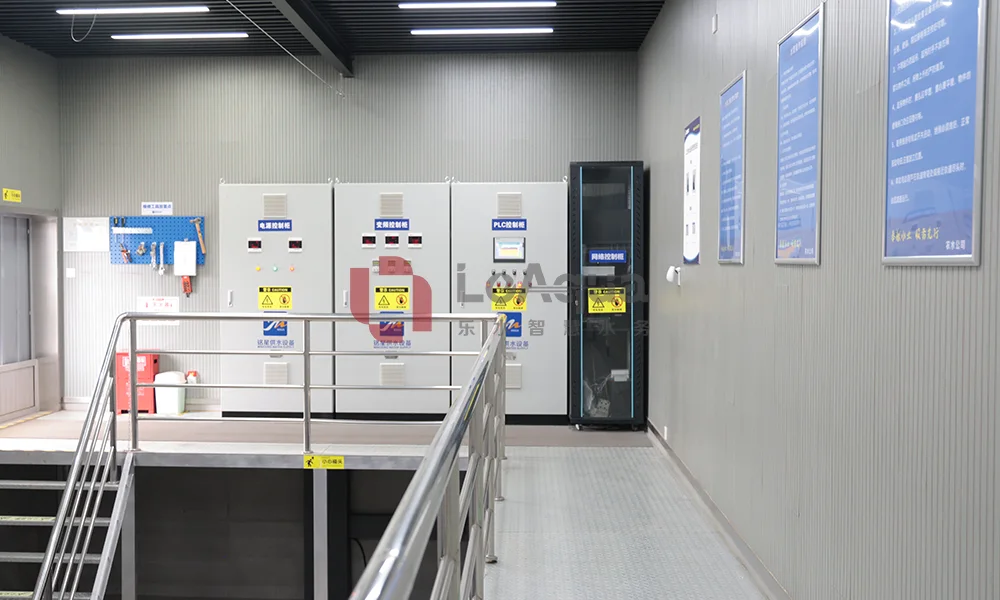

• Intelligent Pressure Compensation: The automated control cabinet continuously tracks water pressure and flow rates, dynamically adjusting pump speeds to ensure unyielding supply stability.
• 24/7 Centralized IoT Telemetry: All operational data is synchronized in real time to a cloud-based IoT remote monitoring platform, enabling predictive maintenance, early fault alarms, and unmanned regional water management.

Project Impact

The completed infrastructure sets a benchmarking standard for modern, intelligent regional water resource management:

• Low-Maintenance Lifecycle: The bolted modular tank and smart predictive diagnostics drastically lowered long-term O&M overheads and downtime.
• Optimized Supply Stability: Eradicated pressure drops across remote networks via automated flow-balancing logic.
• Maximized Land Utilization: The integrated tank-pump design and split-level layout drastically reduced installation footprints.
• Enhanced Operational Safety: Total physical separation of electrical control zones from hydraulic process areas minimized occupational and system risks.
